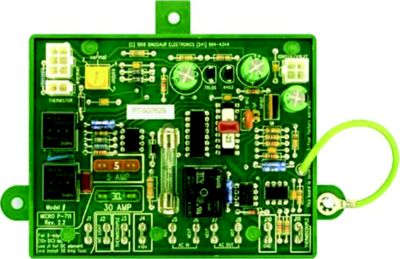

Dinosaur Electronics MICROP711 Refrigerator Boards Replaces any Dometic® Black Box Board part number that begins with "293"

• Built in surge protection. Protects from installation errors and the RV Power supply
• Fuse protected on the 120 VAC circuit, 12 VDC supply and the DC element
• Improved thermocouple circuit to eliminate recurring check light problem
• Food saver feature keeps the refrigerator operating if the eyebrow board or communication link fails
• Built in control allows temperature adjustment in the "Dumb Eyebrow" fixed temperature Americana and Freedom series refrigerators
• The temperature control also allows compensation for aging and production variations in those units that have the -1-2-3-4-5- "Smart Eyebrow" temperature control on the operator panel
• Built in microcontoller for highly reliable operation
• Universal 2-way or 3-way (AC / DC / Gas) operation
• Install optional fuse (provided) for 3-way operation
• Includes an easy to remove protective cover
